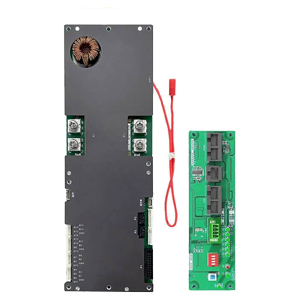

Active Balance Smart BMS 16S20P

Number of Battery Strings:7S to 16S.
Continuous Current:200A.
Power supply mode:The battery pack is self-powered.
Single cell voltage detection range:0-5V,error<10mV over full operating range,Typical error value<5mV.
Support single cell voltage dropout detection.
Balance current:2000mA,Active Balance(Full State On).
Wiring method:same port.
Short Circuit Protection:Support.
Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
Temperature detection:-40～125℃.
Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
Current Sense Shunt:-150A~300A,Error<0.5%FSR.
SoC estimation accuracy:Error<8%(operating conditions).
Battery remaining capacity:error range is less than 8%
Total Cycle AH Cumulative value is half of the charge/discharge value.
Operating power consumption:<5mA(without communication)/15mA(485/CAN).
Standby power consumption:<2mA.
Operating Temperature:-40~85°C.
Storing Temperature:-40～95℃.
Bluetooth, BMS.CAN, RS232, RS485
