HV48300MAX SE - 176,84 kWh (1P11S)
Art.-Nr. 110407100174 · EAN 110407100174 · Pytes
Preisinfo:

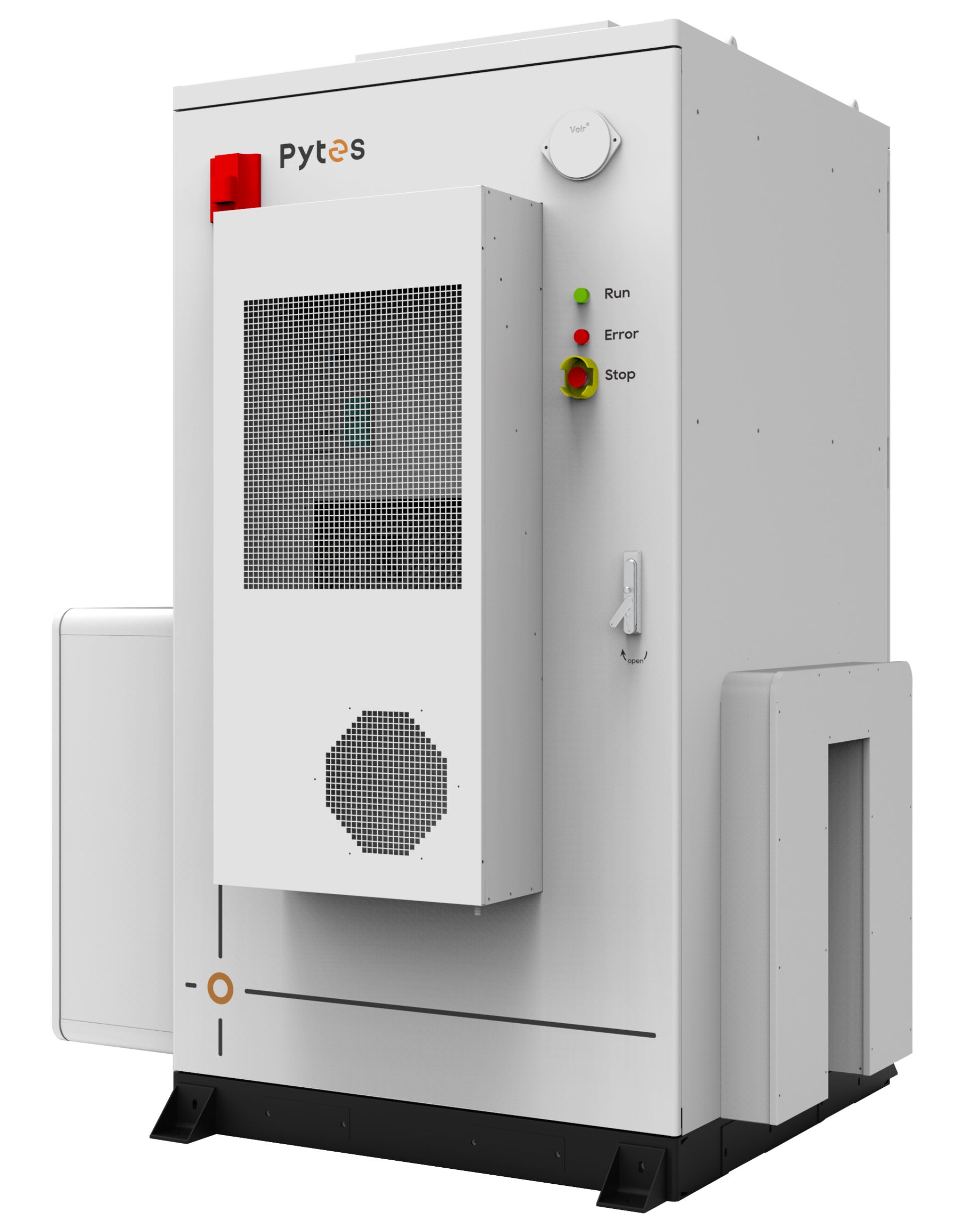

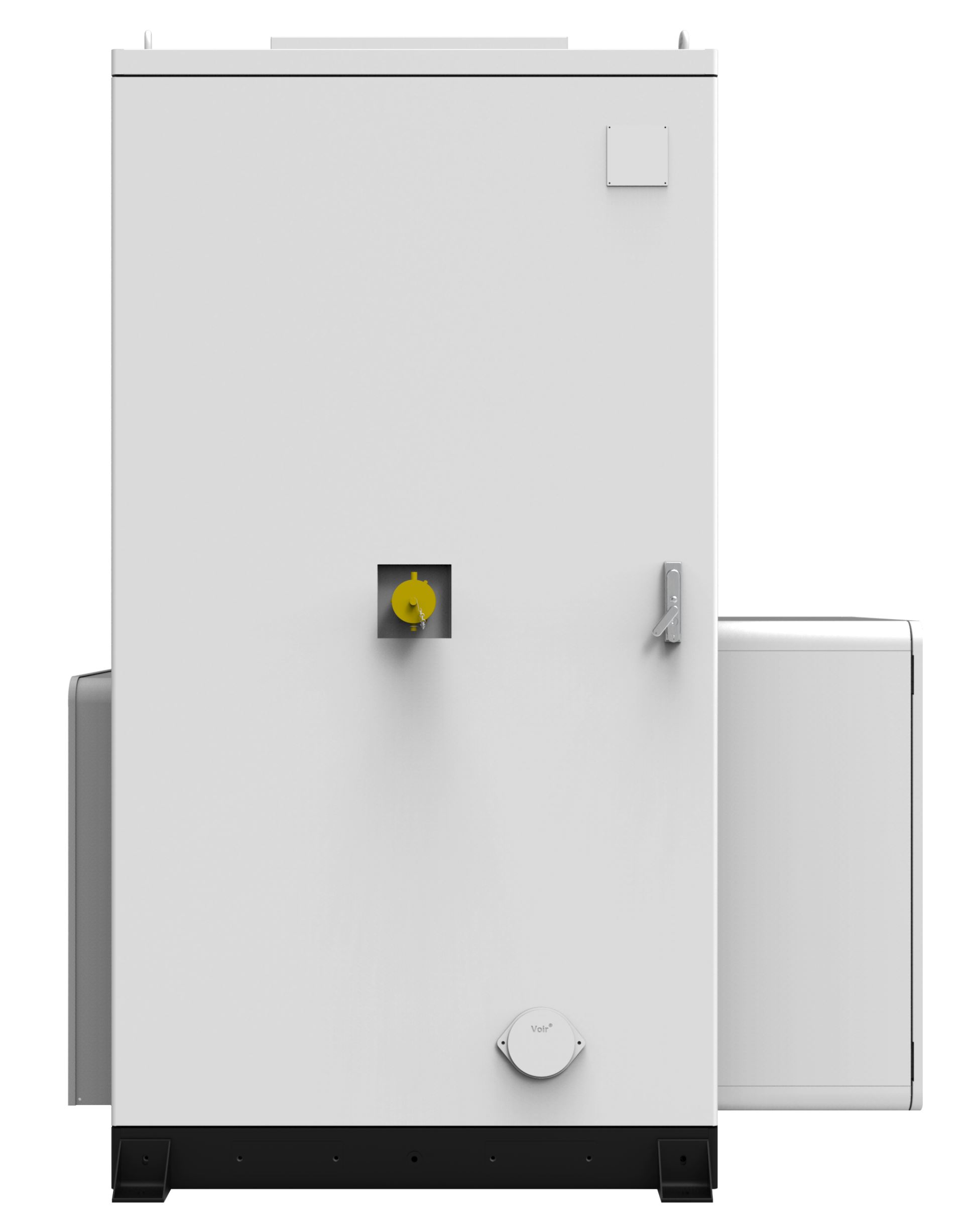

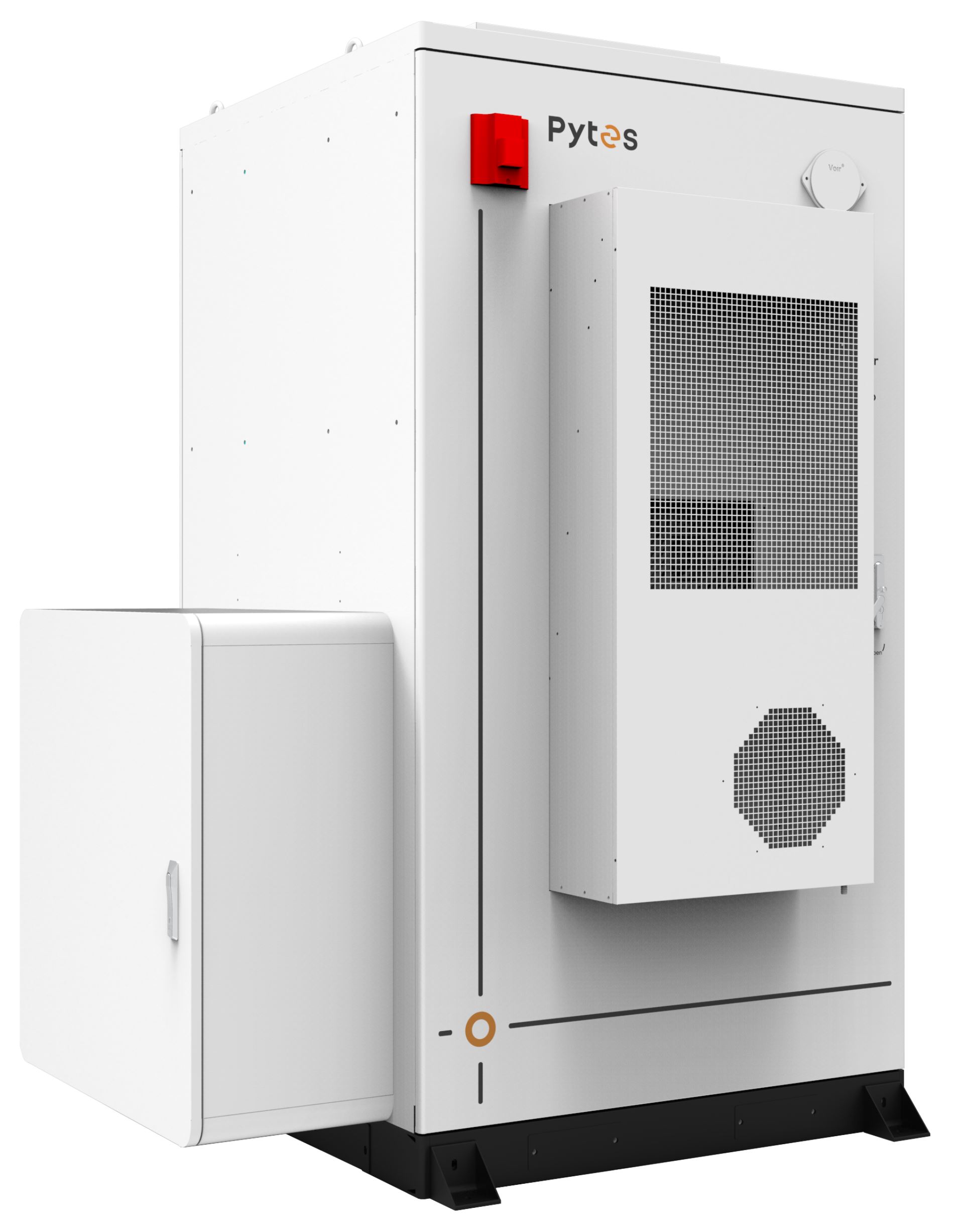

Pytes HV48300 Max SE
Anpassbare C&I Lösung , Großspeicher (Akkusystem) ohne Wechselrichter
Akku: LFP, 16.076 kWh / Einschub, 51,2 V, 46,5V - 56,8 V, 314 Ah, 119 kg
System:
| Rated Energy | 176,84 kWh |
|---|---|
| Rated Power | 88,42 kW |
| Operating Voltage | 511,5 V - 624,8 V |
| Rated Charge / Discharge Current | 157 A |
| Peak Charge / Discharge Current | 205 A |
| Dimension | 1750 x 1450 x 2350, 2043 kg |
| IP | IP55 |
| Cell Cycle Life | 8000 cycles, Operating conditions: 77°F (25°C), 0.5 P @ 90% DoD, ret @70% (EOL). |
| Waranty | Siehe Datenblatt |
HVAC :
| Rated Cooling Capacity | 5000 W |
|---|---|
| Rated Heating Cpacity | 2500 W |
| Certifications | UL 9540A , UL 1973 , UN 38.3 , IEC62619 , CE EMC , IEC63056 , IEC62477 , IEC62040 |
| Passend für viele Wechselrichter | Fragen Sie uns. |
Safe
Tier 1 automotive-grade LFP cells
BMS multi-level monitoring and protection
Multi-layer active fire suppression system
All-Weather
Built-in module-level fans and forced-air
cooling system (HVAC) ensure efficient thermal
management and reliable operation in
high-temperature environments
IP55 rating for indoor and outdoor installation
Scalable
Scale seamlessly to MWh-level capacity with our modular battery system industrial-scale applications
Smart
Remote monitoring with PYTES Battery Cloud
Flexible
Multiple battery string configurations support a wide
range of operating voltage
Universal mounting structure accommodates various
inverter models
